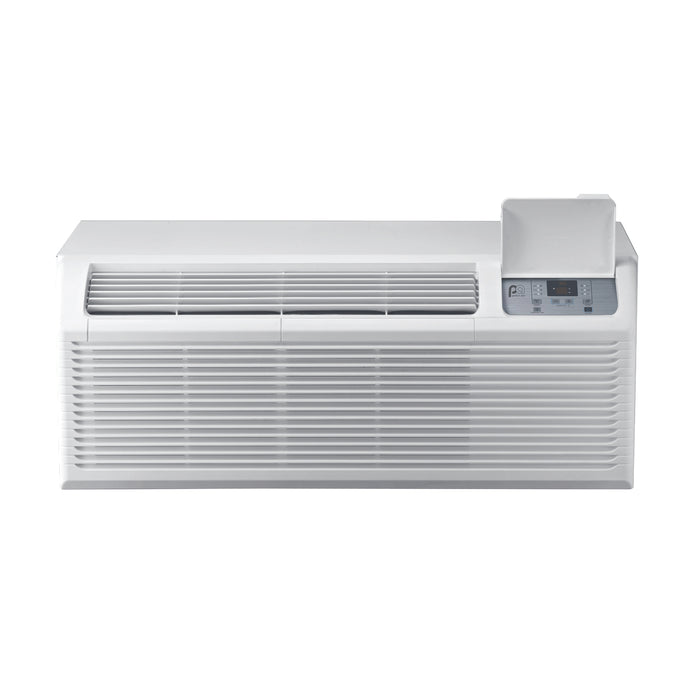

7,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist

Model #4PTH07A-HE-3.5

Bring comfort to any season on any floor of any building with this packaged terminal air conditioner from Perfect Aire®. With a 7,000 BTU capacity, this sleek unit heats and cools rooms up to 300 square feet, so it’s a perfect fit for dorms, hotels and hospitals, or that tricky sunroom. Tenants and customers can independently control their comfort with total energy efficiency, so you’ll find comfort in your downsized energy bills—bonus. The whisper-quiet, all-in-one design keeps a low profile, so it’s a subtle addition to your space and won’t clash with your style.
FEATURES

• 7,200/6,800 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 250-300 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• Memory Function

• EER (Energy Efficiency Rating) of 11.9

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

SPECIFICATIONS

Cooling Capacity (BTU): 7200/7100

Heating Capacity (BTU): 6200/6000

Coverage Area (sq. ft.): 250-350

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range - Heat Pump (°F): 25-75

Heating Operating Temperature Range - Heat Strip (°F): No Min.-75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 104.75

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty

TECHNICAL RESOURCES FOR MODEL 4PTH07A-HE-3.5

View available manuals, energy guides, or submittal sheets.
