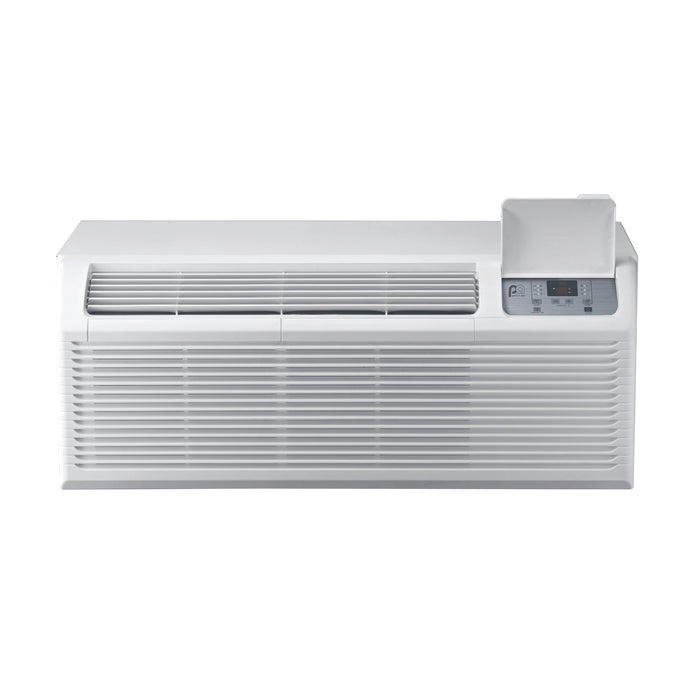

15,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist

Model #4PTC15A-HE-3.5

How do you ensure each and every customer or tenant in a building is in their comfort zone? Install one of these packaged terminal air conditioners in every room of your commercial space—simple as that.With a robust 15,000 BTU capacity, this Perfect Aire® PTAC efficiently heats and cools spaces up to 700 square feet (think: apartments, hotels, even sunrooms). Its sleek profile conceals a self-contained system that does it all at the touch of a button without interfering with your space or style. Not only is it easy on the eyes, it’s easy on the ears, too, operating at a whisper-quiet hum.
FEATURES

• 14,700/14,500 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 550-700 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• EER (Energy Efficiency Rating) of 9.5

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

• Automatic Evaporator Freeze Protection

SPECIFICATIONS

Cooling Capacity (BTU): 14700/14500

Heating Capacity (BTU): 15000/12200

Coverage Area (sq. ft.): 550-650

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range (°F): No Min. - 75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 113.25

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 30.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty

TECHNICAL RESOURCES FOR MODEL 4PTC15A-HE-3.5

View available manuals, energy guides, or submittal sheets.
