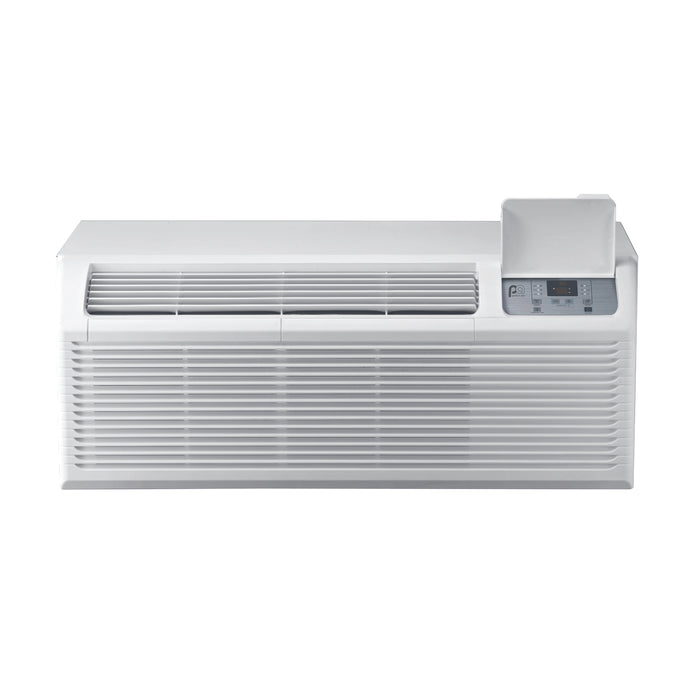

12,000 BTU 230V PTAC w/ 5.0 kW Electric Heat Assist

Model #4PTC12A-HE-5.0

Everyone has their preferred temperature, and this sleek unit makes it possible, even in hotels, apartments and dorms. Install one of these sleek units in every room, and you’ll rest assured everyone is in their comfort zone. Engineered by Perfect Aire®, this 12,000 BTU packaged terminal air conditioner goes from heat to cool at the touch of a button. The sleek, all-in-one design is all about energy efficiency. With a whisper-quiet operation, it brings comfort to spaces up to 550 square feet, whether Active construction or retrofit requirements. Smart features keep the temperature right where you want it while preventing the unit from overworking.
FEATURES

• 12,000/11,800 BTU Packaged Terminal Air Conditioner with 5.0kW electric heater (15,000/12,200 BTU)

• Efficiently delivers comfort to rooms measuring approximately 450-550 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• EER (Energy Efficiency Rating) of 10.7

• Power input is 30A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

• Automatic Evaporator Freeze Protection

SPECIFICATIONS

Cooling Capacity (BTU): 12000/11800

Heating Capacity (BTU): 15000/12200

Coverage Area (sq. ft.): 400-500

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range (°F): No Min. - 75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 108.75

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 30.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty

TECHNICAL RESOURCES FOR MODEL 4PTC12A-HE-5.0

View available manuals, energy guides, or submittal sheets.
