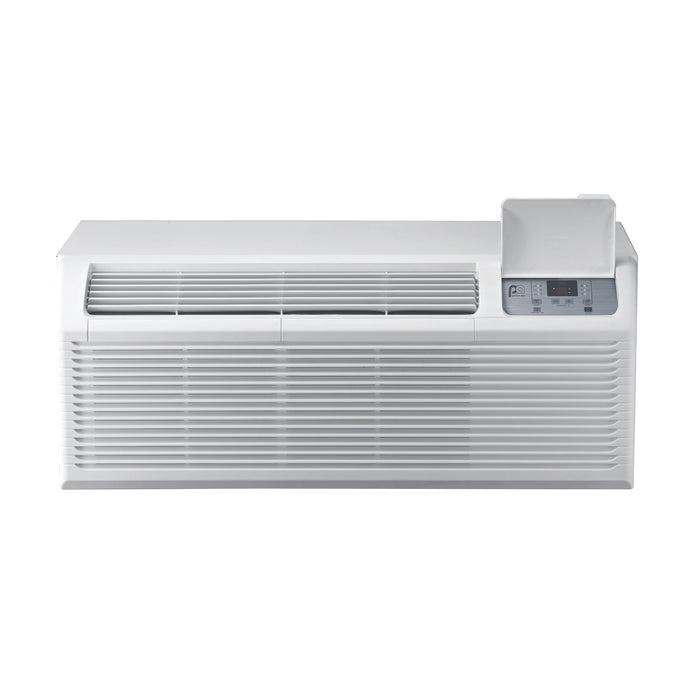

12,000 BTU 230V PTAC Heat Pump w/ 5.0 kW Electric Heat Assist

Model #4PTH12A-HE-5.0

Comfort doesn’t have to be complicated, even in commercial spaces. This packaged terminal air conditioner from Perfect Aire® heats and cools rooms up to 500 square feet with utmost energy efficiency. Tenants and customers in dorms, apartments, hotels and hospitals have total control over their comfort at the touch of a button, so you watch your energy bills go down and your customer satisfaction go up. Whether you’re outfitting a Active construction building, retrofitting an existing one or regulating the temperature of your own sunroom, the sleek profile and whisper-quiet operation won’t interfere with your style or space.
FEATURES

• 12,000/11,800 BTU Packaged Terminal Air Conditioner with 5.0kW electric heater (10,800/10,500 BTU)

• Efficiently delivers comfort to rooms measuring approximately 450-500 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• Memory Function

• EER (Energy Efficiency Rating) of 10.5

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

SPECIFICATIONS

Cooling Capacity (BTU): 12000/11800

Heating Capacity (BTU): 10800/10500

Coverage Area (sq. ft.): 400-500

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range - Heat Pump (°F): 25-75

Heating Operating Temperature Range - Heat Strip (°F): No Min.-75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 116.0

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 30.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty

TECHNICAL RESOURCES FOR MODEL 4PTH12A-HE-5.0

View available manuals, energy guides, or submittal sheets.
